Psvane WE101D / WE101D-L Electronics Vacuum Tube / Stereo Tube Power Amp

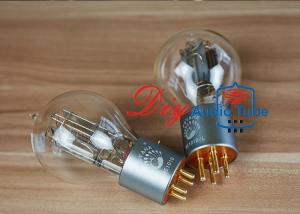

Psvane WE101D / WE101D-L Vacuum Tubes Replica WE101D

The difference between WE101D and WE101D-L is pin, WE101D needs to match original WE-style tube

socket, while WE101D-L only need flat quadrangle tube socket like 300B tube.

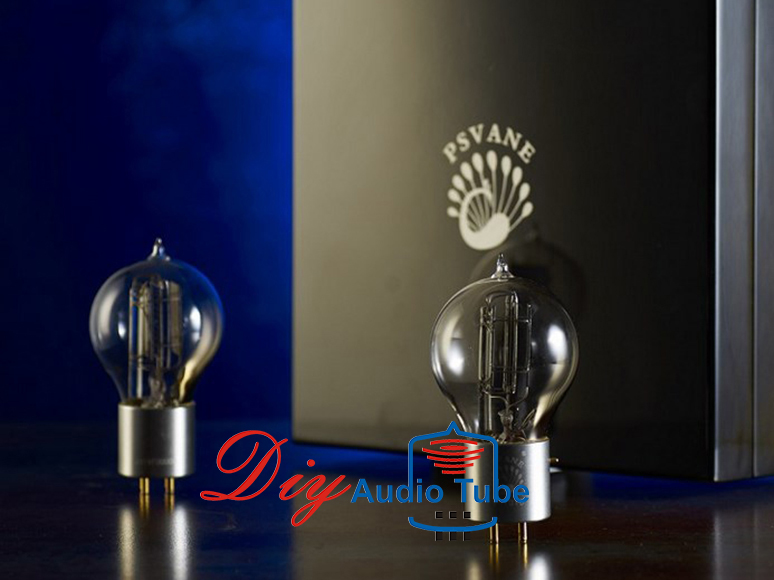

Psvane WE101D / 101D-L Replica tubes:

The Psvane WE101D/101D-L Replica tube is developed to allow 101D amp owners to experience the full potential of 101D tube amplification, without having to spend thousands of dollars. As the original WE101D has a different tube pin size and such a socket is hard to find, Psvane replica tubes offer two tube pin options – one (WE101D Replica) is exactly like the original Western Electric 101D with 4 smaller/shorter pins; the other (WE101-L Replica) has longer pins like a 300B tubes and it can be used with a standard 300B type of tube socket (2 thicker pins, 2 thinner pins).

Because the Psvane WE101D replica tubes also adopt Western Electric’s open plate design, the production process has to overcome many difficulties and production quantity is very limited.

Electrical parameter rating value unit
Direct Interelectrode Capacitances
Input 4.8 uuF
Output 5.2 uuF
Grid to plate ≤ 3.3 uuF

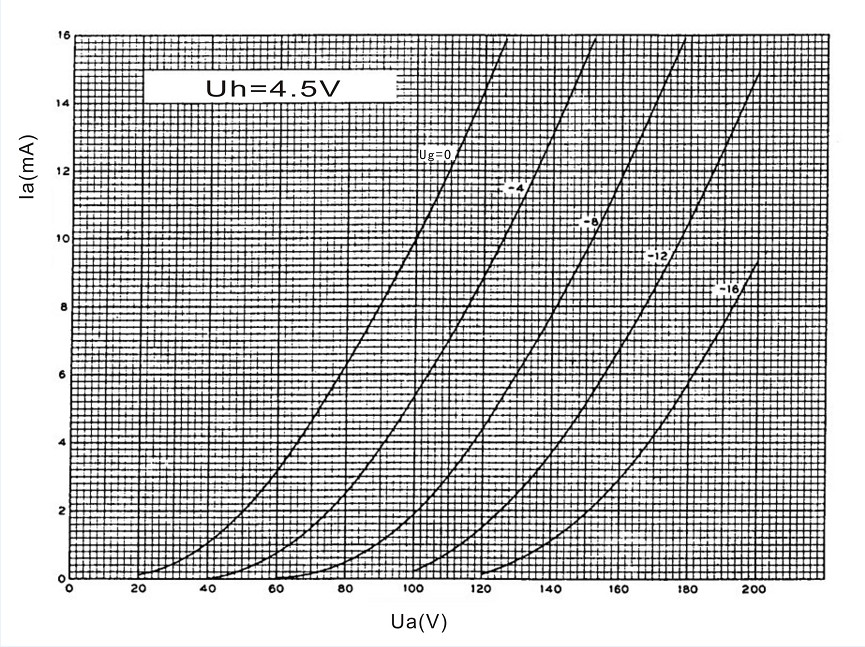

Typical operating parameter
Heater voltage 4.5 V
Heater current 1.0 A
Ua 190 V
Ug -18 V
Ia 6.4 mA

Electrical parameter—absolute maximum ratings minimum maximum unit
Heater voltage 4 5 V
Ua - 300 V
Pa - 15 W
Ia - 30 mA
