Full Wave Rectifier Stereo Vacuum Tubes 2000ohm Load Impedance PSVANE HIFI 274B

Name: Full Wave Rectifier Stereo Vacuum Tubes 2000ohm Load Impedance PSVANE HIFI 274B
Brand: PSVANE
Price: 1 USD

China Full Wave Rectifier Stereo Vacuum Tubes 2000ohm Load Impedance PSVANE HIFI 274B wholesale

Brand Name : PSVANE

Model Number : HiFi 274B

Certification : Rhos

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : Paypal, T/T, Western Union

Supply Ability : 1000pcs/month

Packaging Details : Standard box

Uf : 5V

If : 2.5A

The Anode current peak : 750mA

The Anode power supply : 2x500V

The Anode Voltage Peak : 1550V

Load impedance : 2000ohm

Filter capacitance : 4uF

Rectifier current : more than 230mA

Warranty : 6 months

Contact Now

Stereo Vacuum Tubes PSVANE HIFI 274B Vacuum Valve Tube Full-wave rectifier

Item specifics:

Type: Vacuum tube

Brand: PSVANE

Model: HIFI 274B

Country/Region of Manufacture: China

274B

Hi-Fi Series: classic style, exquisite craft, comprehensive and balanced sound performance, largest sales volume over the world, best choice for you .

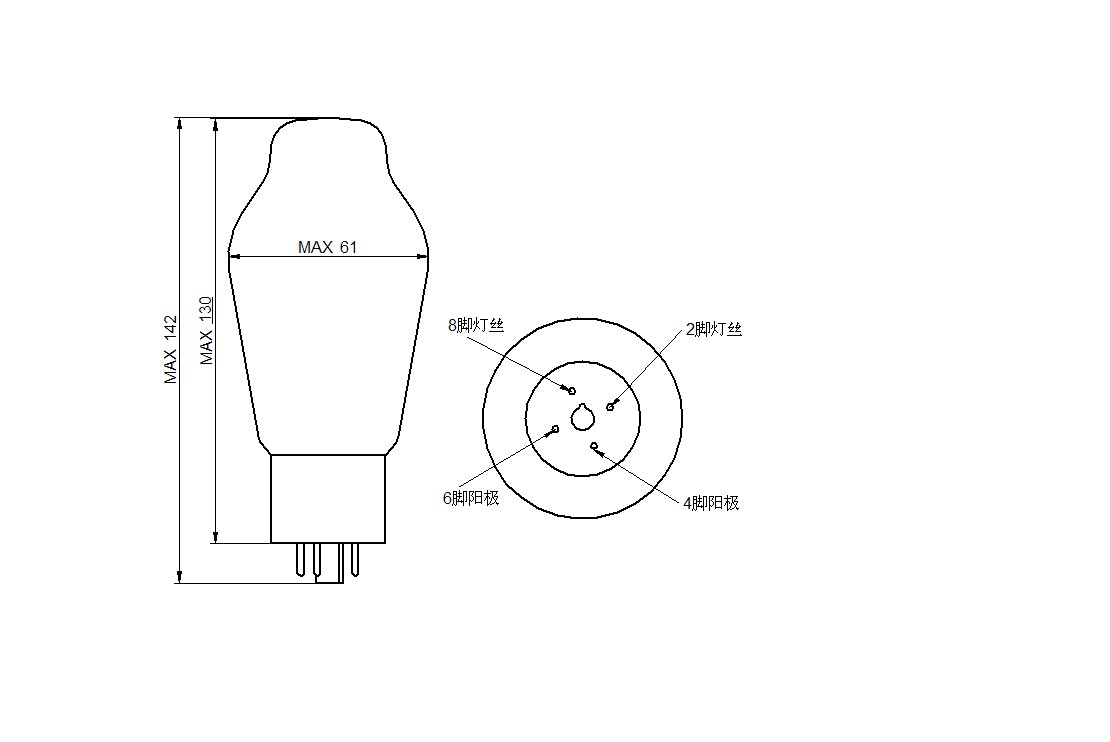

Glass shell eight feet directly heated full-wave rectifier,274B is very similar with 5U4G and 5Z3P, which can be replaced by each other.

Heater
Uf………………5V
If…………… 2.5A

Maximum Rating
anode inverse peak voltage……………1550V
anode peak current ………750mA

Recommend working condition

Anode supply voltage 2×500V
Each arm impedance 75Ω
load impedance 2000Ω
Filter capacitor 4μF
Rectifier current ≧230mA

Full Wave Rectifier Stereo Vacuum Tubes 2000ohm Load Impedance PSVANE HIFI 274B

Our products:

Shuguang Vacuum Tubes	AUDIO Grade Electrolytic Capacitors
Psvane Audio Tubes	Silver Mica Capacitors
New Old Stock China Russia tubes	AUDIO Polyester Film Capacitors
NOS Mullard,Tung-sol,RCA,Philips,GEC tubes	Metal Film Resistor
DIY Tube Sockets	Power Aluminum shell Wirewound resistor
Amplifier Spikes Feet Pads	Ceramic Resistors
Guitar Amplifer handles	Transformers
Panel Meters	LED Diods
Turret Boards PCBs	transistor AUDIO MOSFET ICs, Potentiometers
Various Knobs	Panel Indicator Light
Various Connectors	Paper Tube box
Various Switches	Guitar Effect Pedal Aluminium Case Enclosures

Product Tags:

vacuum tube amplifier kit

speaker vacuum tube

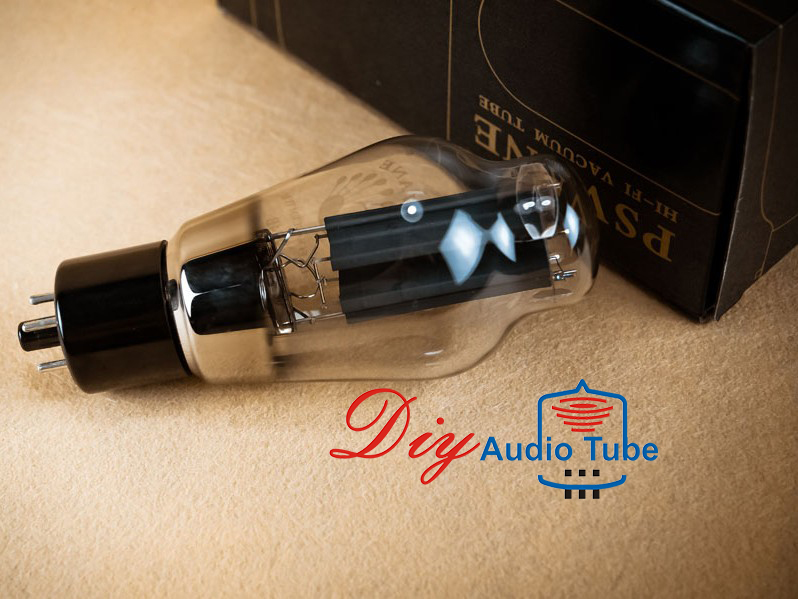

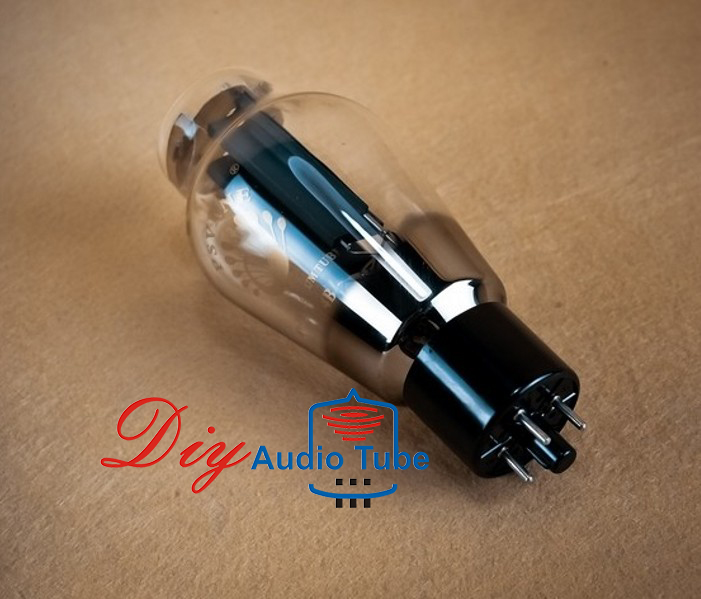

Full Wave Rectifier Stereo Vacuum Tubes 2000ohm Load Impedance PSVANE HIFI 274B Images
