Shuguang 6SN7-T Electronic Vacuum Tube Heater Current 0.6 Replacing 6SN7 CV181

Name: Shuguang 6SN7T Electronic Vacuum Tube Heater Current 06 Replacing 6SN7 CV181
Brand: Shuguang
Price: 1 USD

China Shuguang 6SN7-T Electronic Vacuum Tube Heater Current 0.6 Replacing 6SN7 CV181 wholesale

Brand Name : Shuguang

Model Number : 6SN7-T

Certification : Rhos

Place of Origin : China

MOQ : Negotiable

Payment Terms : Paypal, T/T, Western Union

Supply Ability : 1000pcs/month

Packaging Details : Standard box

Model : CV181-T

Brand : Shuguang

Type : Vacuum Tube

Replace type : 6SN7GT,6SN7-T,WE6SN7,CV181,CV181-Z

Matched : Matched pair

Package : Gift box

Price : Negotiable

Contact Now

Electron Tubes Shuguang Audio Valve Vacuum Tube 6SN7-T replace 6SN7 CV181

1.6SN7 Identical to 6SN7-GBT is a medium-mu twin tiode suitable for use in a wide variety of general-purpose amplifier and phase inverter applications.It is aslo especially useful as a blocking oscillator, multivibrator, or vertical-deflection amplifier in television receivers.

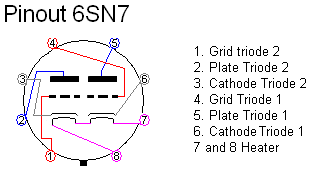

2. 6SN7 is a dual triode vacuum tube with an 8-pin octal base. It provided a medium gain (20). The 6SN7 is basically two 6J5 triodes in one envelope.

Shuguang 6SN7-T Electronic Vacuum Tube Heater Current 0.6 Replacing 6SN7 CV181

Cathode-Coated Unipotential
	6SN7-GTA	6SN7-GTB	12SN7-GTA
Heater Voltage AC or DC	6.3	6.3	12.6 Volts
Heater Current	0.6	0.6	0.3 Amperes
Heater Warn-up time		10.5
Direct Interelectrode Capacitances		Section 1	Section 2
Grid to Plate		4.0	3.8 uuf
Input		2.2	2.6 uuf
Output		0.7	0.7 uuf
